• Two groups of high pressure rubber hoses are displayed, one of them are small hoses and the other have different fittings.
  • It shows several kinds of hydraulic rubber hoses fittings installed on the hoses.
  • There are many high pressure rubber hoses displayed in the picture, all of them have the same fitting.

High pressure hose for different applications and in knitted forms

Hebei Qianli Rubber Products Co., Ltd. is a leading company in manufacturing high pressure hoses and our products are sold very well both at home and abroad. High pressure hoses - the most important part of modern equipment, are widely used for all hydraulic systems, gas and water supply  to deliver fluids under pressure (oils, fats, emulsions and others).

Hoses are made of different materials with different technologies depending on the operating environment, limiting pressure, climatic conditions and the fluids that they convey. Our high pressure hose products give the best solutions for customers to solve the fluids problems in hydraulic systems.

Structure and Material of Various High Pressure Rubber Hose

A steel wire reinforced hose, several steel wire spiraled hose, detailed structure of textile reinforced hydraulic hose and a thermoplastic hydraulic hose.Steel wire reinforced hydraulic hoses include many kinds of rubber hoses, such as EN 853 1SN/2SN, EN 857 1SC/2sc and so on. It is composed of three parts: tube, reinforcement and cover. The tube and the cover are made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone and aging. The reinforcement is made from multiple layers of high tensile steel wire, making the hose have solid structure and resistant to high pressure.

Steel wire spiraled hydraulic hoses also include many kinds of rubber hoses, such as EN 856 4SH/4SP, SAE 100 R12/R13/R15 and so on. It is composed of three parts: tube, reinforcement and cover. The tube and the cover are made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, oils, weather, ozone, aging, cut and sunlight. Therefore, the hose is suitable for delivering petroleum-based hydraulic oils. The reinforcement is made from multiple layers of high tensile spiraled steel wire, making the hose highly resistant to high pressure. And this kind of rubber hose is suitable for extremely high pressure environment.

Textile reinforced hydraulic hose is easy to operate for its excellent flexibility. It is composed of three parts: tube, reinforcement and cover. The tube and the cover are made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, oils, weather,ozone and aging. The reinforcement is made from multiple layers of braided textile, making the hose flexible and lightweight.

Thermoplastic hydraulic hose is suitable for delivering petroleum or water based hydraulic fluids in the suitable working temperature. It is composed of three parts: tube, reinforcement and cover. The tube and the cover are made from high quality thermoplastic and the reinforcement is made from high quality synthetic fiber. Therefore, the hose is flexible and lightweight and it has long service life.

High pressure air hose is usually used as the connector between air compressor and other device. It is composed of three parts: tube, reinforcement and cover. The tube and cover are made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, oils, fire, weather, ozone and aging. The reinforcement is made from multiple layers of high strength synthetic fiber, making the hose have solid structure.

Nylon resin hose is resistant to solvent, organic acids, alkalis and oils. Besides, it is resistant to abrasion, corrosion and cracking. It can be divided into three kinds according to the structure: nylon pressure hose, fiber reinforced nylon resin hose and steel reinforced nylon resin hose. The inner surface of nylon resin hose is made from resin, so it is slippery, making the fluids go through the hose smoothly.

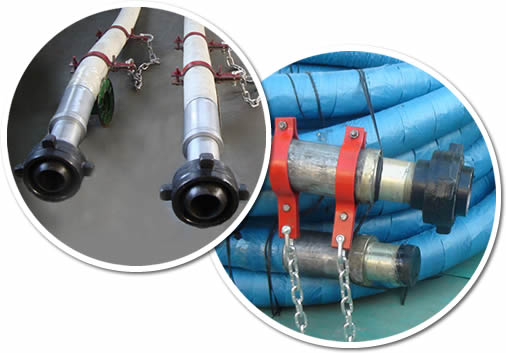

Rotary drilling hose is mainly used to deliver water-based or oil-based mud or other fluids in suitable working temperature. It is mainly used for oil exploration, cement repairing, geological exploration and water conveyance for coal excavation. It is also composed of three parts: tube, reinforcement and cover. The tube and the cover are made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, oils, weather, ozone, aging and sunlight. The reinforcement is made from 2-8 layers of high tensile spiraled steel wire, making the hose work well in high pressure environment.

High pressure steam hose is suitable for transferring high temperature steam. It is composed of three parts: tube, reinforcement and cover. The tube and the cover are made from high quality EPDM, making the hose resistant to high temperature, abrasion, corrosion, weather, ozone and aging. The reinforcement is made from two layers of high tensile braided steel wire, making the hose resistant to high pressure.

Products

Steel Wire Reinforced Hydraulic Hose

Steel Wire Reinforced Hydraulic Hose

We supply complete steel wire reinforced hydraulic hoses, including EN 853 1SN, SAE 100 R1 steel wire reinforced hydraulic hose and so on.
more
Steel Wire Spiraled Hydraulic Hose

Steel Wire Spiraled Hydraulic Hose

We supply complete steel wire spiraled hydraulic hose products, such as EN 856 4SH/4SP, SAE 100 R12/R13/R15 and R9.
more
Textile Reinforced Hydraulic Hose

Textile Reinforced Hydraulic Hose

We supply complete textile reinforced hydraulic hose products, such as EN 854 1TE/2TE/3TE, SAE 100 R3/R4/R6 textile reinforced hydraulic hoses.
more
Thermoplastic Hydraulic Hose

Thermoplastic Hydraulic Hose

We supply complete thermoplastic hydraulic hose products, including SAE 100 R7/R8/R14 thermoplastic hydraulic hose.
more
