High Quality Armoured Hoses for Onshore & Offshore Drilling Activities

Armoured hose (armored hose) is a kind of rubber hoses covered with a layer of armor. Thanks to the protection of the armor, it has higher strength and better abrasion resistance. According to the armor material, armoured hoses are divided into polymer armoured hoses, stainless steel armoured hoses and braided stainless steel armoured hoses.

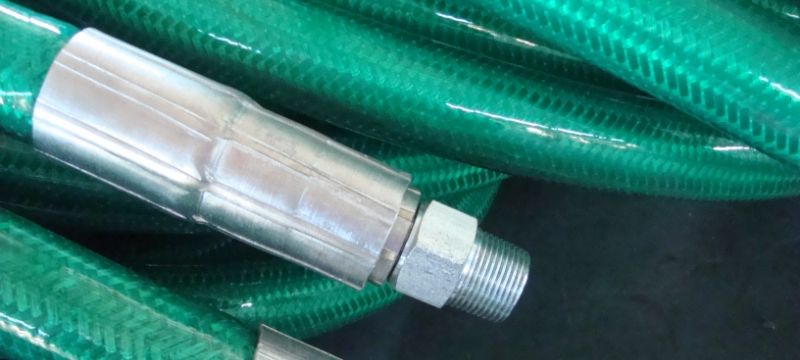

Many polymer armoured hoses are placed on the ground.

Polymer armoured hose

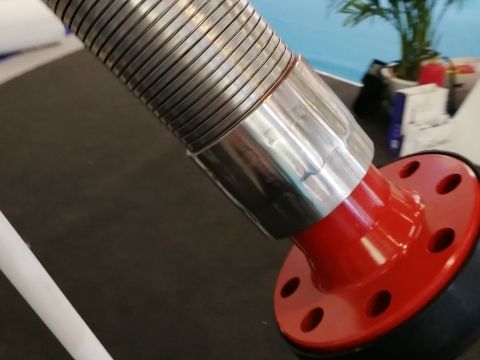

A stainless steel armoured hose is displayed.

Stainless steel armoured hose

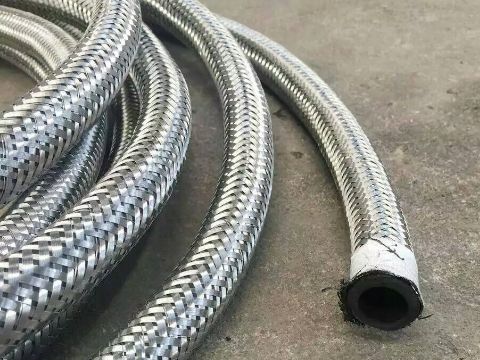

Braided stainless steel armoured hoses are placed on the ground.

Braided stainless steel armoured hose

Armoured hoses are widely used in the drilling industry to connect a variety of drilling devices. Next, we'd like to introduce some armoured hoses commonly used in the drilling industry.

Armoured BOP Hose

It is used to connect the blowout preventer and various valves for controlling the well pressure. Our armoured BOP hoses are produced in accordance with APT 16D standards and can withstand minimum 1300 °F (+700 °C) flame temperature at working pressure for 5 minutes without failure.

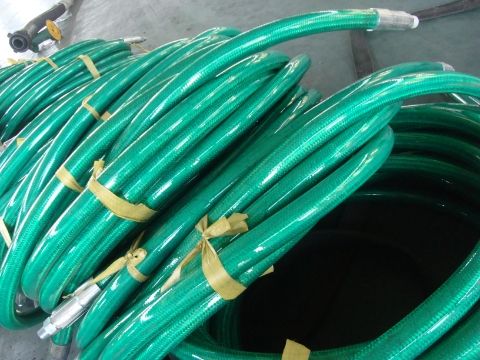

Many polymer armoured BOP hoses are placed on the ground.

Polymer armoured BOP hose

Stainless steel armoured BOP hose and accessories are displayed.

Stainless steel armoured BOP hose

Specification

  • Tube: Oil resistant synthetic rubber
  • Reinforcement: Four or six high tensile steel wire spirals
  • Cover: Oil and fire resistant synthetic rubber
  • Armour types: polymer, stainless steel, braided stainless steel, or customized.
  • Operating temperature: -40 °C to +120 °C
  • Standard: API 16D
Armoured BOP Hose Technical Data
Inner Diameter Outer Diameter Operating Pressure Min. Burst Pressure Minimum Bend Radius Weight
Inch mm mm PSI MPa PSI MPa mm kg/m
1/2" 13 38 5000 35 20000 140 230 1.28
3/4" 19 44 5000 35 20000 140 280 1.85
1" 25 50 5000 35 20000 140 360 2.69
1-1/4" 32 56 5000 35 20000 140 460 3.34
1-1/2" 38 63 5000 35 20000 140 560 5.3
2" 51 73 5000 35 20000 140 700 7.4
1/2" 13 44 10000 70 30000 210 240 1.35
3/4" 19 50 10000 70 30000 210 290 2.06
1" 25 56 10000 70 30000 210 370 3.05
1-1/4" 32 62 10000 70 30000 210 475 4.2
1-1/2" 38 69 10000 70 30000 210 570 5.87
2" 51 80 10000 70 30000 210 720 7.78

Armoured Choke and Kill Hose

It is essential to control the well control equipment. Choke hose is used to direct drilling fluids from the annulus to the choke manifold and kill hose connects the mud pump and the well high pressure pipeline. Drilling fluids can be pumped into the well through the pipeline to control a threatened blowout.

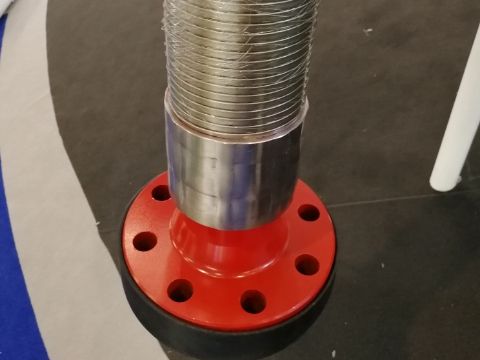

An armoured choke and kill hose is placed on the ground.

Stainless steel armoured choke and kill hose

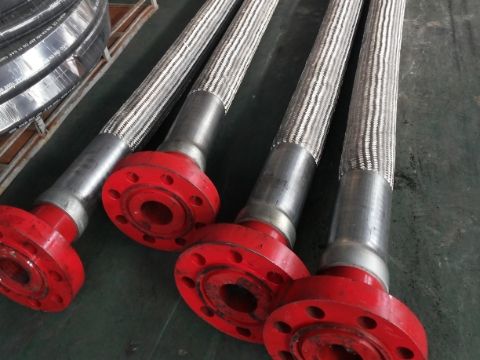

4 braided stainless steel armoured choke and kill hoses are placed on the ground

Braided stainless steel armoured choke and kill hose

Specification:

  • Hose: Synthetic NBR, corrosion-resistant & abrasion-resistant
  • Reinforcement: multiple high tensile steel spirals
  • Armour type: stainless steel, braided stainless steel
  • Operating pressure: 5000 PSI, 10000 PSI, 15000 PSI
  • Operating temperature: -22 °F to 200 °F (-30 °C to 93 °C)
  • End fittings: API male nipples, API flanges, butt welded hammer unions and other special connections
  • Standard: API Spec 16C
Armoured Choke And Kill Hose
Inner Diameter Outer Diameter Operating Pressure Test Pressure Min. Burst Pressure Minimum Bend Radius
Inch Inch PSI PSI PSI Inch
2-1/2" 4.15" 5000 10000 15000 36"
3" 4.61" 5000 10000 15000 48"
3-1/2" 5.25" 5000 10000 15000 54"
4" 6.4" 5000 10000 15000 60"
2-1/2" 5.14" 10000 15000 22500 48"
3" 5.64" 10000 15000 22500 48"
3-1/2" 6.05" 10000 15000 22500 54"
2-1/2" 5.66" 15000 22500 33750 60"
3" 6.16" 15000 22500 33750 60"

Armoured Kelly Hose

Also known as mud hose, it is used to connect the standpipe to the swivel. It allows the drill string to be raised and lowered while the drill fluid is pumped through it.

Just produced Kelly hoses

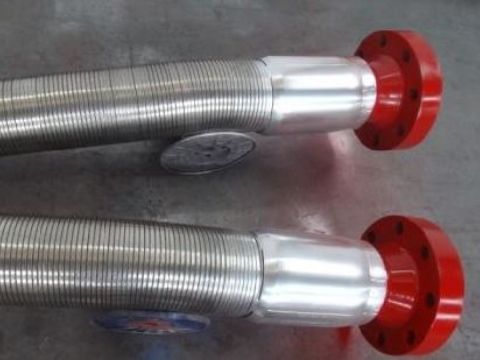

Stainless steel armoured Kelly hose

Well placed Kelly hoses

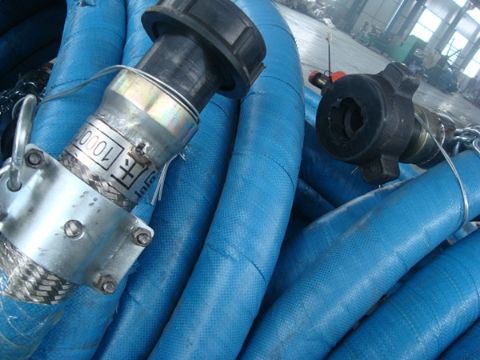

Braided stainless steel armoured Kelly hose

Specification:

  • Tube: NBR
  • Reinforcement: Two layers of spiral steel wire cables
  • Armour type: stainless steel, braided stainless steel
  • Operating temperature: -22 °F to 200 °F (-30 °C to 93 °C)
  • Inner diameter: 2.5" – 5"
  • Standard: API 7K
Armoured Kelly Hose Technical Data
Inner Diameter Operating Pressure Test Pressure API Grade Safety Factor MBR Storage MBR Operation
Inch PSI Bar PSI Bar m m
2.5 5000 345 10000 690 D 2.5 0.8 0.9
3 5000 345 10000 690 D 2.5 1 1.2
3.5 5000 345 10000 690 D 2.5 1.2 1.4
4 5000 345 10000 690 D 2.5 1.2 1.4
5 5000 345 10000 690 D 2.5 1.3 1.5
